10-element backscatter calibration sample

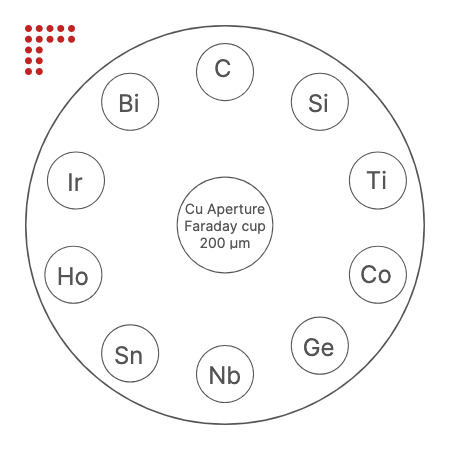

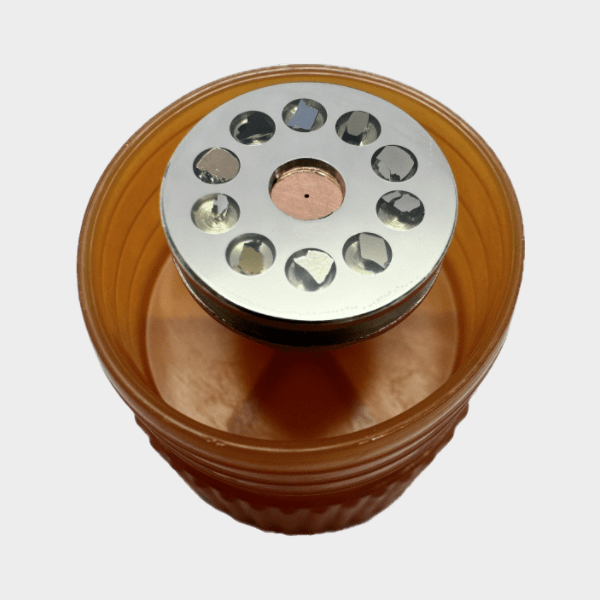

Backscatter Electron Detector calibration standard with 10 materials mounted and polished in a standard 12.5 mm aluminum pin stub. In the center of the stub is a 3.05 mm copper 200 µm aperture to serve as Cu/Al reference, as well as a Faraday cup.

  1. Carbon
  2. Silicon
  3. Titanian
  4. Cobalt
  5. Germanium
  6. Niobium
  7. Tin
  8. Holmium
  9. Iridium
  10. Bismuth

Can be mounted on these SEM brands:
FEI / Thermo Fisher, Hitachi*, Jeol*, Phenom, Tescan and Zeiss microscopes.

  • Product number: 10_BSD_FC
  • Price per unit: € 687,50
*Require a pin stub adapter
10-element BSD calibration sample
10-element BSD calibration sample
Periodic Today Back Scattered Electron Calibration Standard/Stub – 10 Standards with Faraday Cup
