5-component EDS calibration sample

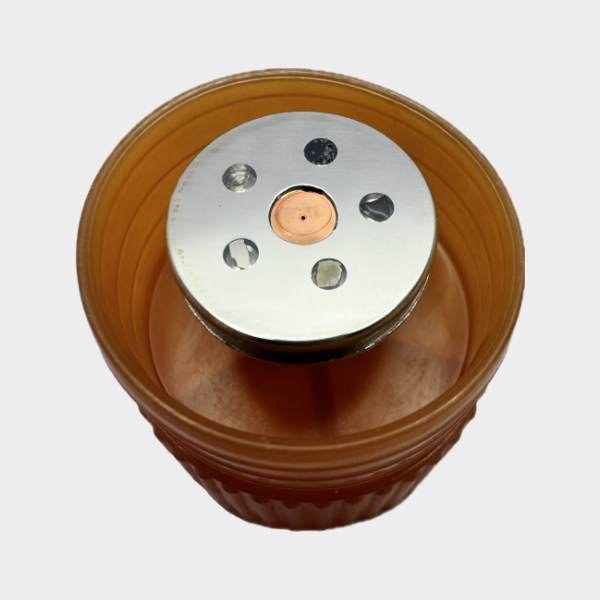

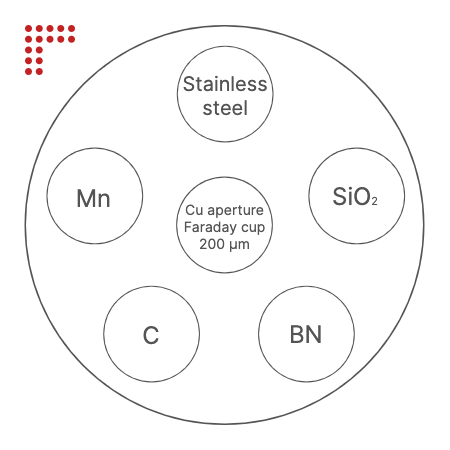

5 materials mounted and polished in a standard 12.5 mm aluminum pin stub. In the centre of the stub is a 3.05 mm copper 200 µm aperture to serve as Cu/Al reference, as well as a Faraday cup.

1. Stainless steel (AISI 316L)
2. Silicon dioxide
3. Boron Nitride
4. Carbon
5. Manganese

Can be mounted on these SEM brands:
FEI / Thermo Fisher, Hitachi*, Jeol*, Phenom, Tescan and Zeiss microscopes.

• Product number: 05_EDSb_FC
• Price per unit: € 260,-

*Require a pin stub adapter
