Au-Cu 6 NIST certified elements

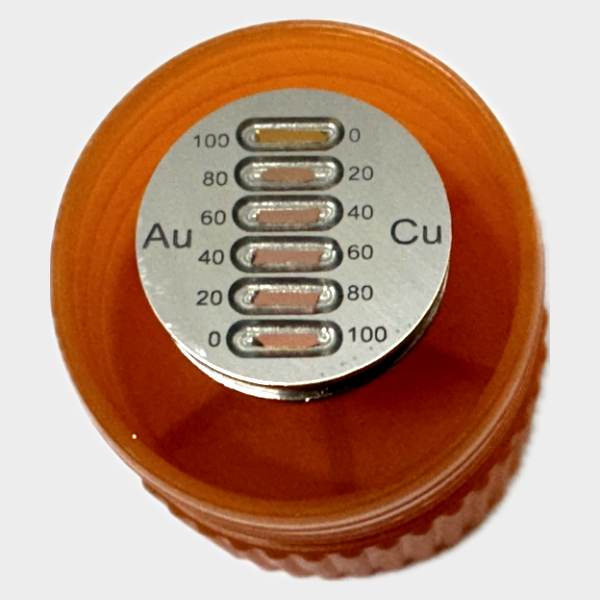

NIST Standard Set – 6 NIST certified embedded elements. The wires are embedded sideways into a 1/2″ pin stub to provide maximum analysis area. The surface has a polish finish down to 0.5µm, and is coated with 10nm carbon. The concentrations are laser engraved in the surface to make it even easier to recognize.

NIST element-certification report is included in hard copy and digital on request. This sample can be used to test quantification of EDS and WDS, either for normalised measurements or for standard-based analysis.

  1. 100% Au
  2. 80-20 Au-Cu
  3. 60-40 Au-Cu
  4. 40-60 Au-Cu
  5. 20-80 Au-Cu
  6. 100% Cu

Can be mounted on these SEM brands:
FEI / Thermo Fisher, Hitachi*, Jeol*, Phenom, Tescan and Zeiss microscopes.

  • Product number: Au-Cu 6 NIST
  • Price per unit: € 795,-
*Require a pin stub adapter
5-light element EDS calibration sample with copper grid

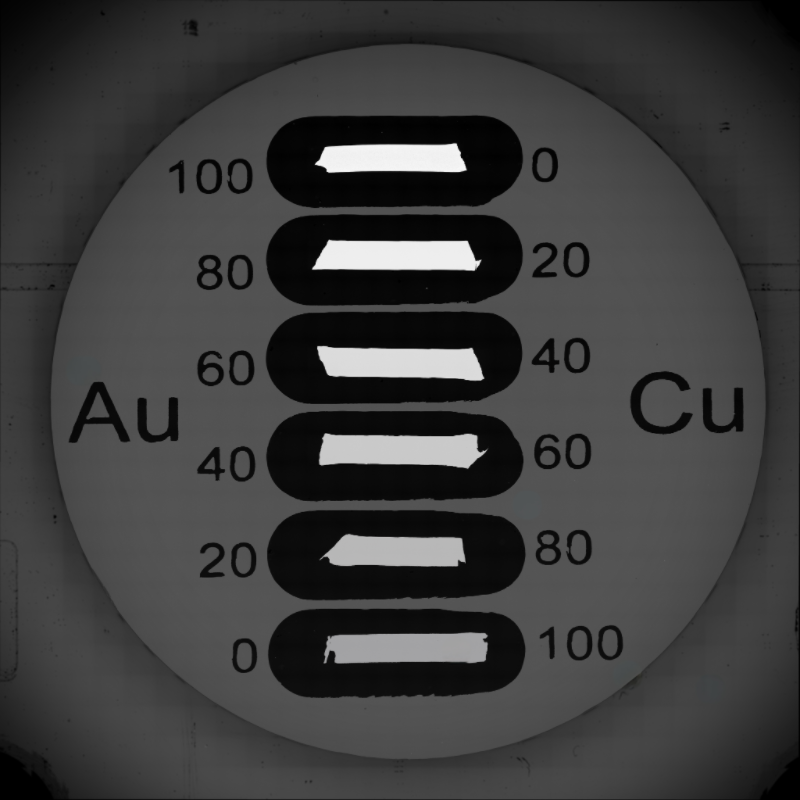

Au-Cu 6 NIST certified standard BSD image
