Peak deconvolution reference sample with 10 minerals
Used as a challenging test sample for (auto) peak identification and quantification. Useful as a learning sample during user training to explain peak overlap and the challenges associated with it.

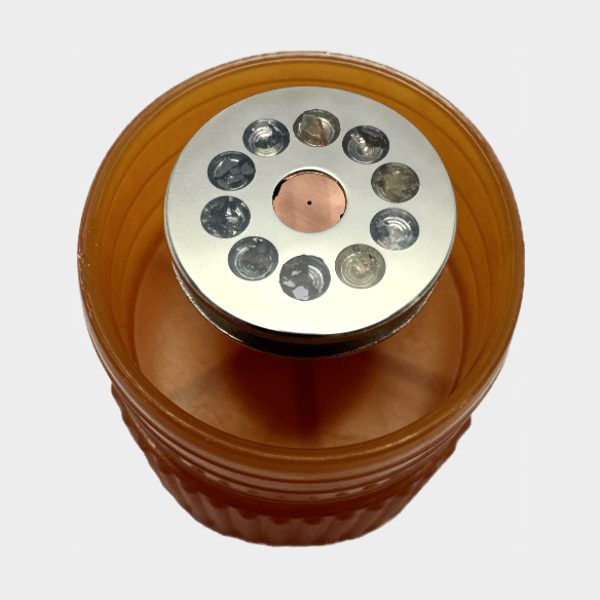

EDS Peak Deconvolution test sample. It is mounted and polished in a standard 12.5 mm pin stub.

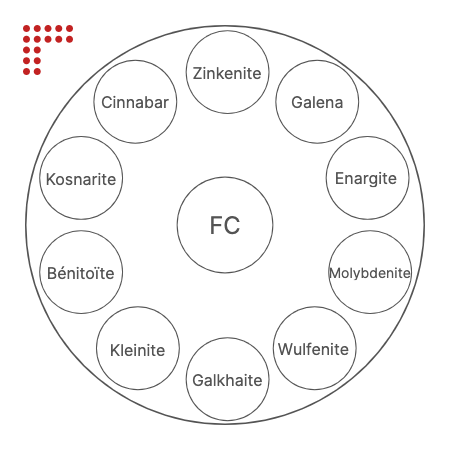

- Zinkenite – Pb9Sb22S42
- Galena – PbS
- Enargite – Cu3AsS4
- Molybdenite – MoS2
- Wulfenite – PbMoO4
- Galkhaite – (Cs,Ti) (Hg,Cu,Zn)6(As,Sb)4S12
- Kleinite – Hg2N(Cl,SO4).n(H2O)
- Benitoite – BaTiSi3O9
- Kosnarite – KZr2(PO4)3
- Cinnabar – HgS
Can be mounted on these SEM brands:
FEI / Thermo Fisher, Hitachi*, Jeol*, Phenom, Tescan and Zeiss microscopes.
- Product number: 10_PD_FC
- Price per unit: € 687,50
* Require a pin stub adapter
